Automatic online sawing solutions
According to the customer's existing production line, design a professional blanking production line for the customer, with circular saw machine as the core supporting material analyzer, steel marking and marking machine, bar surface cutting fluid drying device, bar diameter monitoring system, single and double head chamfering machine, automatic weighing system and other weight control systems, automatic stacking devices, flexible feeding devices, supporting discharging receiving devices, racking manipulator receiving and counting devices, oxidized bar material peeling devices and other auxiliary equipment and connecting with the customer's production line. Make the blanking process use equipment professional, matching, automated and intelligent, and realize fully automatic and efficient blanking supply for customers.
Automatic offline sawing solutions
According to the actual and latest needs of different industries, we have developed a specialized offline sawing production line for loading, sorting, sawing, discharging, testing, palletizing, and packaging, the core of which is to use the cluster feeding frame to realize the automatic feeding of raw materials, the circular saw machine to realize the automatic sizing and cutting of raw materials, and the finished products after being tested by the automatic testing mechanism of the discharge rack are placed in different material frames according to the results by the palletizing robot, and the material frames are transported to the baler for bundling and warehousing after being filled. It can build an efficient and fully automatic offline sawing production line in a small footprint.
Customized sawing solutions for special-shaped parts
According to the special performance needs of customers, a series of special models such as cutting plate circular saw, large diameter round tube ring cutting circular saw machine, large rectangular tube L-shaped rail cutting circular saw machine, large profile profile changing rail cutting circular saw machine can be customized to solve the sawing needs of customers in an all-round way.
Share:
Details

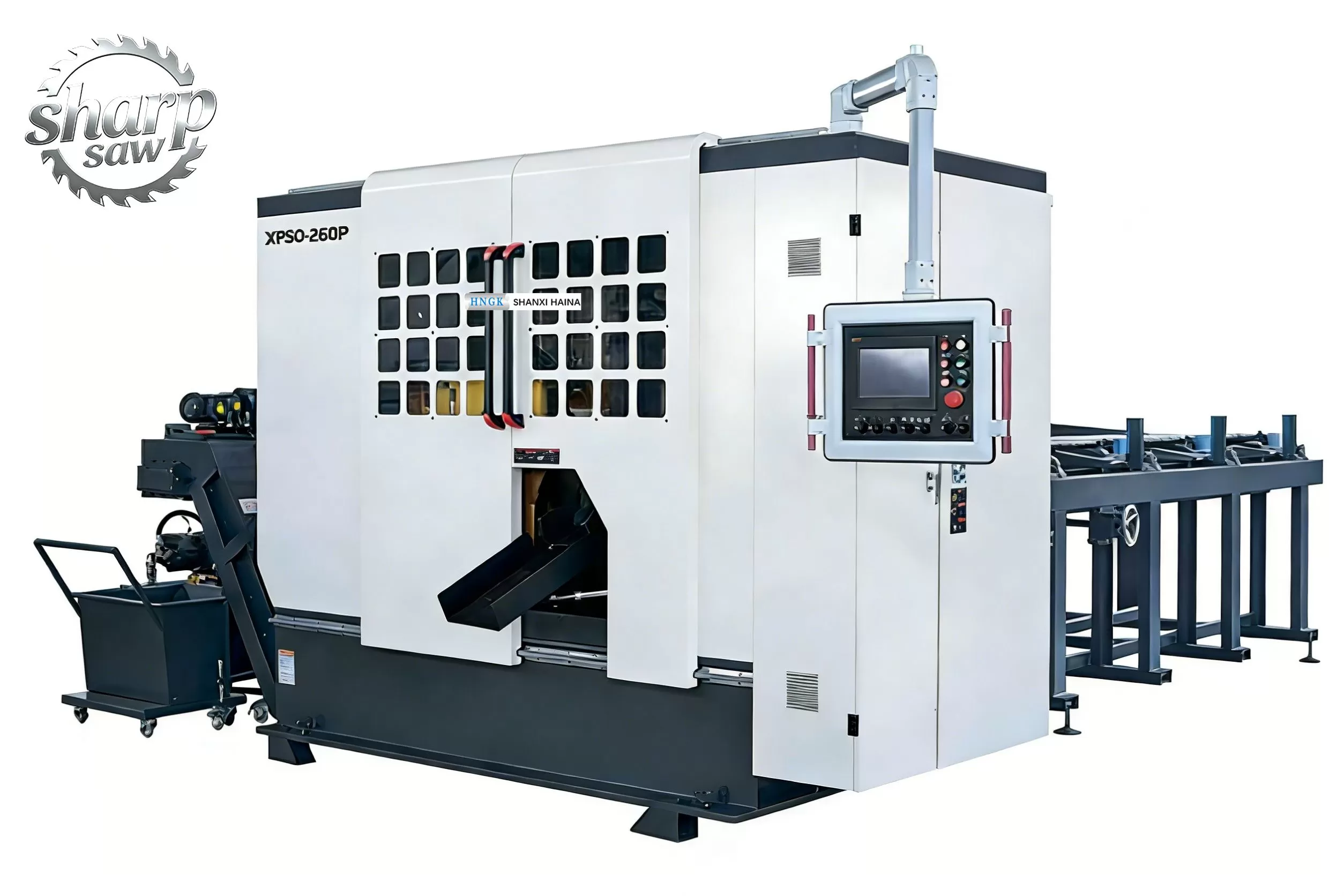

Product Parameters
Parameters | Xpso-150p | Xpso-200p | Xpso-230p | Xpso-260p | Xpso-300p |
Sawing ability | |||||
Bar material material/ Round Tube ●(mm) | Φ40-150 | Φ80-200 | Φ100-230 | Φ150-260 | Φ200-300 |
Angle material /square pipe ■ (mm) | 40-130 | 80-150 | 100-230 | 150-195 | 200-252 |
Machine head device | |||||
Saw blade specification （mm） | Φ460*2.7T | Φ630*3.4T | Φ750*3.8T | Φ860*4.0T | Φ960*4.2T |
Spindle drive motor (kw) | 18.5(4P) | 22(4P) | 25(4P) | 30（4p） | 37（4p） |
Saw blade rotational speed (rpm) | 40-100 | 40-100 | 40-80 | 40-60 | 40-60 |
Cut off the feeding method | Bevel feed (AC servo motor + ball screw + linear guide) | ||||
Main clamp method | Hydraulic inclined and horizontal clamping 1set each | ||||
Gear clearance compensation device | Through-shaft brake (pneumatic/magnetic powder) | ||||
Saw blade deflection shockproof device | Tungsten carbide parallel block | ||||
Cut to length feedinging (GFC) mechanism | |||||
Cut to length feeding mode | Servo motor + ball screw | ||||
Feeding clamp mode | Horizontal hydraulic clamping | ||||
End cut length （mm） | ≥10 | ||||
Tail length （mm） | ≥130 | ≥130 | ≥130 | ≥130 | ≥130 |
Single feed length (mm) | 10-1000 | 10-1000 | 10-1000 | 10-1000 | 10-1000 |
Loading rack parameters | |||||
Allowable feeding length (mm) | 2000-6000 (Customized loading rack is required for exceeding specifications) | ||||
Feeding method | Pre-discharged hydraulic lift | ||||
Hydraulic system | |||||
Hydraulic drive motor (kw) | 3.75（4p） | ||||
Hydraulic drive pressure (mpa) | 9.0 | ||||
Hydraulic oil capacity （L） | 150 | ||||
Size and weight | |||||
Size（L*W*H）mm | 7400*4200*3000 | 8000*4600*3000 | 8000*4600*3000 | 11000*4800*3000 | 11000*4800*3000 |
Weight （kg） | 7900 | 10000 | 12000 | 13600 | 15500 |
Equipped & optional | |||||
Lubrication system | Manual cluster lubrication/automatic timing quantitative centralized lubrication | ||||
Divider | Pneumatic reciprocating/custom dispensers | ||||
Saw blade debris removal method | Passive round wire brush/active round wire brush | ||||
Chip removal device | Standard chip extractor/custom chip extractor | ||||
Oil mist recovery | Multi-stage filtering oil mist recovery machine | ||||
Electric control box heat exchanger | Closed high efficiency heat exchange system | ||||
Feeding device | Standard loading rack/cluster loading rack | ||||
Discharging long material receiving device | Customized on demand, online, offline, and robotic automatic palletizing and packaging | ||||
