Xpso-xs bevel series (Economical, Intelligent, Efficient)
Cnc full-automatic high speed metal circula saw machine
Parameters | Xpso-60xs | Xpso-80xs | Xpso-100xs | Xpso-120xs | Xpso-160xs |
Sawing ability | |||||
Bar material / Round Tube ●(mm) | φ10-60 | Φ20-80 | Φ30-100 | Φ30-120 | Φ40-160 |
Angle material /square pipe ■ (mm) | 10-42 | 10-55 | 30-70 | 30-85 | 40-112 |
Machine Machine head device | |||||
Saw blade specification （mm） | φ250*2.0T | φ285*2.0T | Φ330*2.0T | Φ360*2.25T | Φ460*2.7T |
Spindle drive motor (kw) | 5 .5 (Servo motor) | 7.5 (Servo motor) | 11 (Servo motor) | 13 (Servo motor) | 18.5 (Servo motor) |
Saw blade rotational speed (rpm) | 20-200 | 20-200 | 20-180 | 20-160 | 20-160 |
Cut off the feeding method | Bevel feed (AC servo motor + ball screw + linear guide) | ||||
Main clamp method | Hydraulic inclined and horizontal clamping 1set each | ||||
Gear clearance compensation device | Through-shaft brake (pneumatic/magnetic powder) | ||||
Saw blade deflection shockproof device | Tungsten carbide parallel block | ||||
Cut to length feeding (GFC) mechanism | |||||
Cut to length feedinging mode | AC servo motor + ball screw | ||||
Feeding clamp mode | Horizontal hydraulic clamping | ||||
End cut length （mm） | ≥10 | ||||
Tail length （mm） | ≥60 | ≥70 | ≥80 | ≥90 | ≥100 |
Single feed length (mm) | 10-800 | 10-800 | 10-800 | 10-800 | 10-800 |
Loading rack parameters | |||||
Allowable feeding length (mm) | 2000-6000 (Customized loading rack is required for exceeding specifications) | ||||
Feeding method | Pre-discharged hydraulic lift | ||||
Hydraulic system | |||||
Hydraulic drive motor (kw) | 3.75（4p） | ||||
Hydraulic drive pressure (mpa) | 7.0 | ||||
Hydraulic oil capacity （L） | 110 | ||||
Size and weight | |||||
Size（L*W*H）mm | 6800*2000*2100 | 6900*2500*2500 | 7100*3000*3000 | 7200*3400*3000 | 7300*3600*3000 |
Weight （kg） | 2100 | 3000 | 3500 | 3680 | 5280 |
Equipped & optional | |||||
Lubrication system | Automatic timing quantitative centralized lubrication | ||||
Divider | Pneumatic reciprocating/custom dispensers | ||||
Saw blade debris removal method | Active round wire brush | ||||
Chip removal device | Standard chip extractor/custom chip extractor | ||||
Oil mist recovery | Multi-stage filtering oil mist recovery machine | ||||
Electric control box heat exchanger | Closed high efficiency heat exchange system | ||||
Feeding device | Standard loading rack/cluster loading rack | ||||
Discharging long material receiving device | Customized on demand, online, offline, and robotic automatic palletizing and packaging | ||||

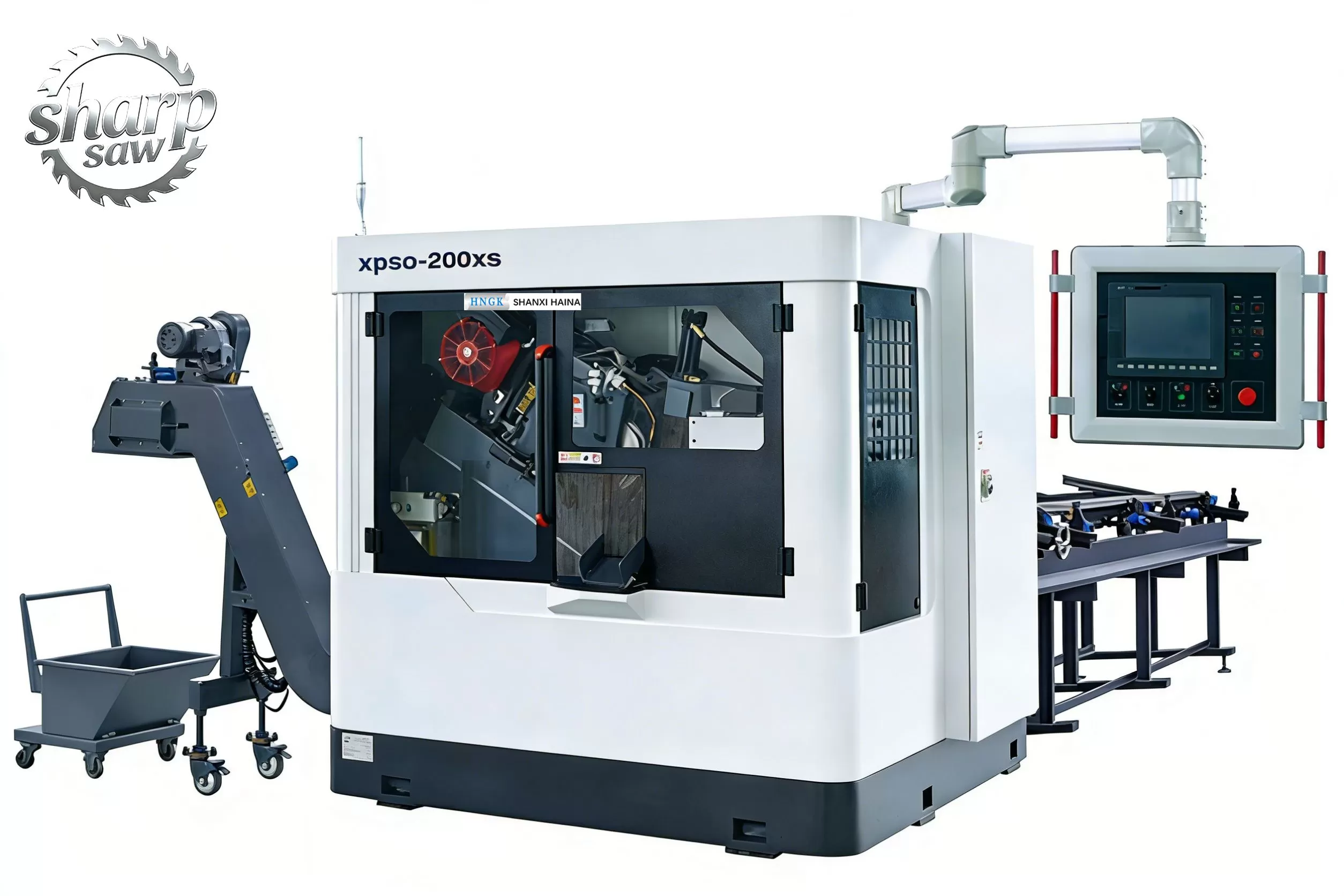

Xpso-xs bevel series (Economical, Intelligent, Efficient)
Cnc full-automatic high speed metal circula saw machine
Parameters | Xpso-200xs | Xpso-230xs | Xpso-260xs | Xpso-300xs | Xpso-360xs |
Sawing ability | |||||
Bar material material/ Round Tube ●(mm) | Φ80-200 | Φ100-230 | Φ130-260 | Φ170-300 | Φ200-360 |
Angle material /square pipe ■ (mm) | 80-140 | 100-160 | 130-180 | 170-210 | 200-252 |
Machine head device | |||||
Saw blade specification （mm） | Φ540*3.0T | Φ700*3.8T | Φ750*3.8T | Φ860*4.0T | Φ960*4.2T |
Spindle drive motor (kw) | 22 (Servo motor) | 25 (Servo motor) | 30 (Servo motor) | 37 (Servo motor) | 45 (Servo motor) |
Saw blade rotational speed (rpm) | 10-150 | 10-130 | 10-110 | 10-100 | 10-90 |
Cut off the feeding method | Bevel feed (AC servo motor + ball screw + linear guide) | ||||
Main clamp method | Hydraulic inclined and horizontal clamping 1set each | ||||
Gear clearance compensation device | Through-shaft brake (pneumatic/magnetic powder) | ||||
Saw blade deflection shockproof device | Tungsten carbide parallel block | ||||
Cut to length feedinging (GFC) mechanism | |||||
Cut to length feeding mode | AC Servo motor + ball screw | ||||
Feeding clamp mode | AC servo motor + ball screw | ||||
End cut length （mm） | Horizontal hydraulic clamping | ||||
Tail length （mm） | ≥130 | ≥130 | ≥130 | ≥130 | ≥130 |
Single feed length (mm) | 10-1000 | 10-1000 | 10-1000 | 10-1000 | 10-1000 |
Loading rack parameters | |||||
Allowable feeding length (mm) | 2000-6000 (Customized loading rack is required for exceeding specifications) | ||||
Feeding method | Pre-discharged hydraulic lift | ||||
Hydraulic system | |||||
Hydraulic drive motor (kw) | 5.5（4p） | ||||
Hydraulic drive pressure (mpa) | 9.0 | ||||
Hydraulic oil capacity （L） | 150 | ||||
Size and weight | |||||
Size（L*W*H）mm | 7400*3700*3100 | 8000*4000*3500 | 10000*4600*4000 | 11000*4600*4000 | 11000*4600*4500 |
Weight （kg） | 7500 | 10000 | 12000 | 13600 | 15500 |
Equipped & optional | |||||
Lubrication system | Automatic timing quantitative centralized lubrication | ||||
Divider | Pneumatic reciprocating/custom dispensers | ||||
Saw blade debris removal method | Active round wire brush | ||||
Chip removal device | Standard chip extractor/custom chip extractor | ||||
Oil mist recovery | Multi-stage filtering oil mist recovery machine | ||||
Electric control box heat exchanger | Closed high efficiency heat exchange system | ||||
Feeding device | Standard loading rack/cluster loading rack | ||||
Discharging long material receiving device | Customized on demand, online, offline, and robotic automatic palletizing and packaging | ||||
