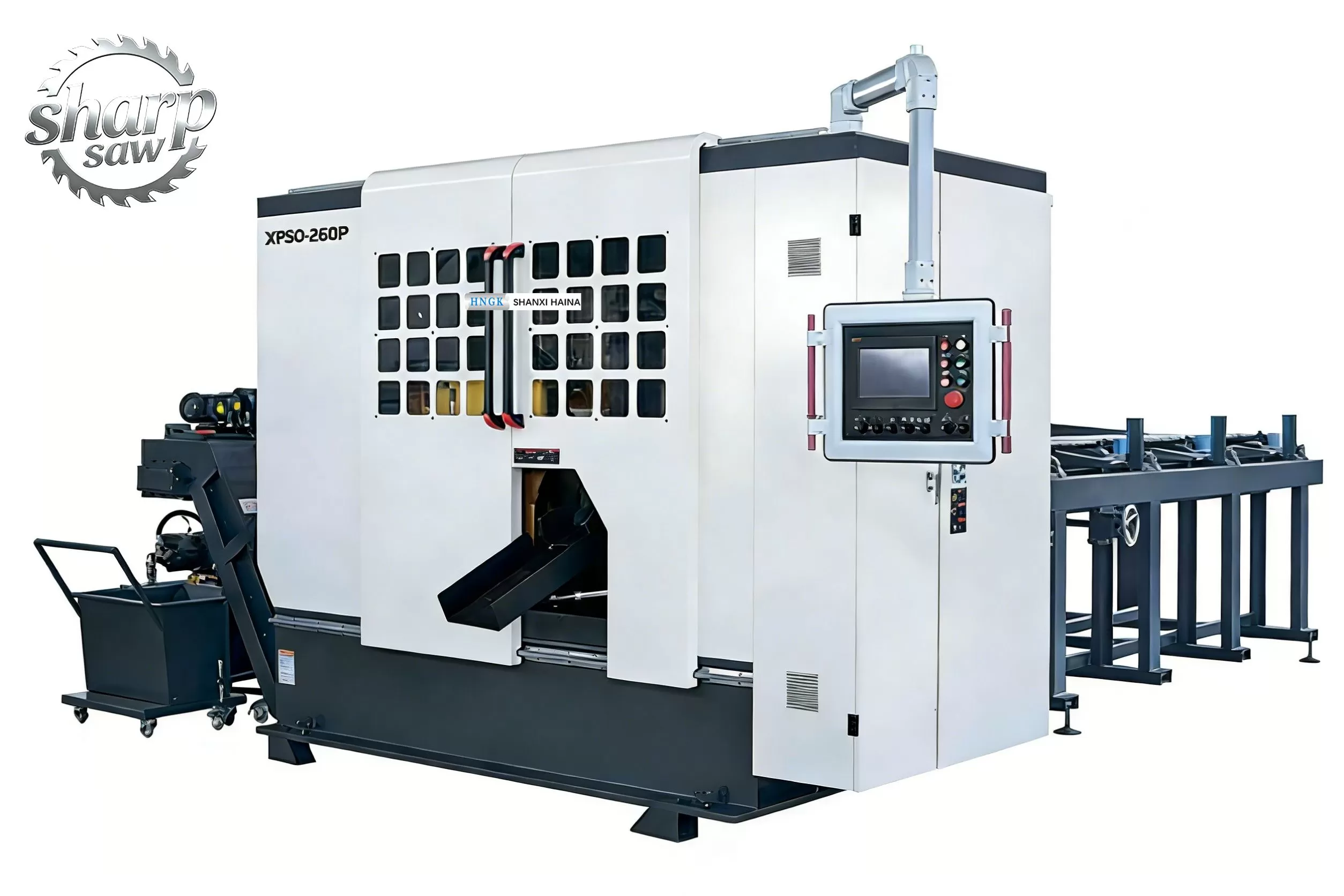

Xpso-p Flat Cutting Series (Efficient, Intelligent, Smooth)
CNC full-automatic high speed metal circula saw machine
Parameters | Xpso-50p | Xpso-70p | Xpso-80p | Xpso-100p | Xpso-120p |
Sawing ability | |||||
Bar material material/ Round Tube ●(mm) | φ10-50 | Φ10-70 | Φ10-80 | Φ20-100 | Φ40-120 |
Angle material /square pipe ■ (mm) | 10-35 | 10-55 | 10-60 | 20-85 | 40-100 |
Machine head device | |||||
Saw blade specification （mm） | φ250*2.0T | φ285*2.0T | Φ300*2.0T | Φ360*2.6T | Φ425*2.7T |
Spindle drive motor (kw) | 4(4P) | 7.5(4P) | 7.5(4P) | 11（4p） | 13（4p） |
Saw blade rotational speed (rpm) | 40-160 | 40-160 | 40-160 | 40-140 | 40-140 |
Cut off the feeding method | Bevel feed (AC servo motor + ball screw + linear guide) | ||||
Main clamp method | Hydraulic inclined and horizontal clamping 1set each | ||||
Gear clearance compensation device | Through-shaft brake (pneumatic/magnetic powder) | ||||
Saw blade deflection shockproof device | Tungsten carbide parallel block | ||||
Cut to length feedinging (GFC) mechanism | |||||
Cut to length feeding mode | Servo motor + ball screw | ||||
Feeding clamp mode | Horizontal hydraulic clamping | ||||
End cut length （mm） | ≥10 | ||||
Tail length （mm） | ≥50 | ≥70 | ≥80 | ≥90 | ≥100 |
Single feed length (mm) | 10-800 | 10-800 | 10-800 | 10-800 | 10-800 |
Loading rack parameters | |||||
Allowable feeding length (mm) | 2000-6000 (Customized loading rack is required for exceeding specifications) | ||||
Feeding method | Pre-discharged hydraulic lift | ||||
Hydraulic system | |||||
Hydraulic drive motor (kw) | 2.25（4p） | ||||
Hydraulic drive pressure (mpa) | 7.0 | ||||
Hydraulic oil capacity （L） | 110 | ||||
Size and weight | |||||
Size（L*W*H）mm | 6800*2000*2000 | 7200*2600*2500 | 7200*2700*2500 | 7200*3400*2500 | 7300*3400*2500 |
Weight （kg） | 2800 | 3500 | 3600 | 4300 | 4500 |
Equipped & optional | |||||
Lubrication system | Manual cluster lubrication/automatic timing quantitative centralized lubrication | ||||
Divider | Pneumatic reciprocating/custom dispensers | ||||
Saw blade debris removal method | Passive round wire brush/active round wire brush | ||||
Chip removal device | Standard chip extractor/custom chip extractor | ||||
Oil mist recovery | Multi-stage filtering oil mist recovery machine | ||||
Electric control box heat exchanger | Closed high efficiency heat exchange system | ||||
Feeding device | Standard loading rack/cluster loading rack | ||||
Discharging long material receiving device | Customized on demand, online, offline, and robotic automatic palletizing and packaging | ||||
Xpso-p Flat Cutting Series (Efficient, Intelligent, Smooth)
CNC full-automatic high speed metal circula saw machine
Parameters | Xpso-150p | Xpso-200p | Xpso-230p | Xpso-260p | Xpso-300p |
Sawing ability | |||||
Bar material material/ Round Tube ●(mm) | Φ40-150 | Φ80-200 | Φ100-230 | Φ150-260 | Φ200-300 |
Angle material /square pipe ■ (mm) | 40-130 | 80-150 | 100-230 | 150-195 | 200-252 |
Machine head device | |||||
Saw blade specification （mm） | Φ460*2.7T | Φ630*3.4T | Φ750*3.8T | Φ860*4.0T | Φ960*4.2T |
Spindle drive motor (kw) | 18.5(4P) | 22(4P) | 25(4P) | 30（4p） | 37（4p） |
Saw blade rotational speed (rpm) | 40-100 | 40-100 | 40-80 | 40-60 | 40-60 |
Cut off the feeding method | Bevel feed (AC servo motor + ball screw + linear guide) | ||||
Main clamp method | Hydraulic inclined and horizontal clamping 1set each | ||||
Gear clearance compensation device | Through-shaft brake (pneumatic/magnetic powder) | ||||
Saw blade deflection shockproof device | Tungsten carbide parallel block | ||||
Cut to length feedinging (GFC) mechanism | |||||
Cut to length feeding mode | Servo motor + ball screw | ||||
Feeding clamp mode | Horizontal hydraulic clamping | ||||
End cut length （mm） | ≥10 | ||||
Tail length （mm） | ≥130 | ≥130 | ≥130 | ≥130 | ≥130 |
Single feed length (mm) | 10-1000 | 10-1000 | 10-1000 | 10-1000 | 10-1000 |
Loading rack parameters | |||||
Allowable feeding length (mm) | 2000-6000 (Customized loading rack is required for exceeding specifications) | ||||
Feeding method | Pre-discharged hydraulic lift | ||||
Hydraulic system | |||||
Hydraulic drive motor (kw) | 3.75（4p） | ||||
Hydraulic drive pressure (mpa) | 9.0 | ||||
Hydraulic oil capacity （L） | 150 | ||||
Size and weight | |||||
Size（L*W*H）mm | 7400*4200*3000 | 8000*4600*3000 | 8000*4600*3000 | 11000*4800*3000 | 11000*4800*3000 |
Weight （kg） | 7900 | 10000 | 12000 | 13600 | 15500 |
Equipped & optional | |||||
Lubrication system | Manual cluster lubrication/automatic timing quantitative centralized lubrication | ||||
Divider | Pneumatic reciprocating/custom dispensers | ||||
Saw blade debris removal method | Passive round wire brush/active round wire brush | ||||
Chip removal device | Standard chip extractor/custom chip extractor | ||||
Oil mist recovery | Multi-stage filtering oil mist recovery machine | ||||
Electric control box heat exchanger | Closed high efficiency heat exchange system | ||||
Feeding device | Standard loading rack/cluster loading rack | ||||
Discharging long material receiving device | Customized on demand, online, offline, and robotic automatic palletizing and packaging | ||||
